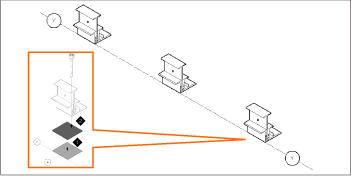

1.Locate the rafters and mark where your first row of modules will be installed.
2.Lay the level sheet where the SmartRack® clamp will go and secure with a lag screw. |
 |
 |

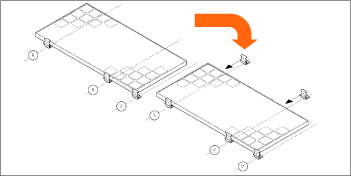

1.Attach your first module onto the first row of SmartRack® clamps from Step 1.
2.Affix the second row of SmartRack® clamps. |
 |
 |

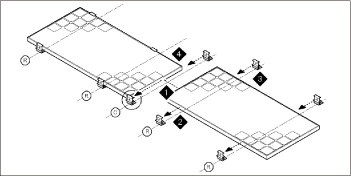

1.Repeat the process from Step 2 for the rest of the modules on your first row.
2.Make sure to leave about a 5mm space in between modules.
3.Secure the second row of SmartRack® clamps. |
 |
 |

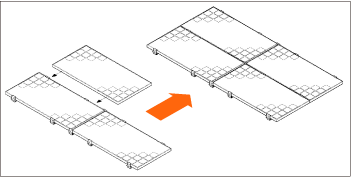

| 1.Repeat the process for the rest of the modules in your array until complete. |
 |
